Pycnometer - Determine density precisely according to DIN EN ISO 2811-1
Pycnometers are indispensable tools for precise density measurements of coating materials such as varnishes and other liquid / pasty products in laboratories and industry

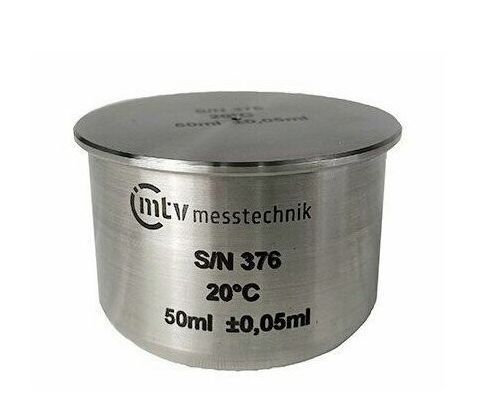

Pycnometer 50 ml according to ISO 2811-1 for easy determination of the density of liquids and pasty substances

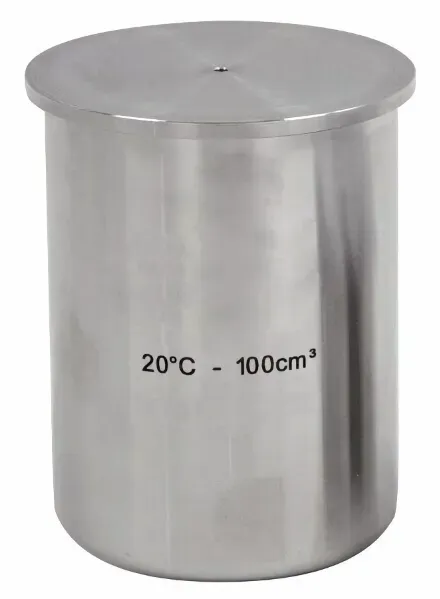

Pycnometer 100 ml according to ISO 2811-1
In Brief: What Is a Pycnometer?
A pycnometer is a laboratory device used to precisely determine the density of liquids, pastes, and solids. The term derives from the Greek "pyknos," meaning "dense."
- Liquid pycnometer: Typically made of glass or metal, e.g. with defined volume (10–100 ml)
- Gas pycnometer: Uses gas displacement (e.g. helium) to determine skeletal density
Applications
Pycnometers are essential in areas such as:
- Chemical & pharmaceutical industries (formulation, quality control)
- Paints & coatings industry (DIN EN ISO 2811-1)
- Food technology, environmental analysis, and material science
- Battery and construction material research
Density Measurement with a Liquid Pycnometer
- Weigh empty pycnometer:
m_Pyk - Fill with reference fluid and weigh:
m_Pyk+Ref - Calculate volume:
V = (m_Pyk+Ref - m_Pyk)/ρ_Ref - Fill with sample and weigh:
m_Pyk+Sample - Calculate density:
ρ = (m_Pyk+Sample - m_Pyk)/V
Common Sources of Error
- Temperature variations – constant temperature is required
- Air bubbles – use vacuum or ultrasonic degassing
- Incomplete filling or residues
- Humidity and incorrect calibration
Relevant Standards
DIN EN ISO 2811-1:2023 is the key standard for density determination using liquid pycnometers in coating materials. Additional relevant standard: ASTM D1217 for petrochemical substances.
FAQ
How often should pycnometers be calibrated?
At least once a year or when deviations are noticeable.
Can I measure viscous media?
Yes, but degassing and careful filling are recommended.
What’s the difference between density and specific gravity?
Density: mass per unit volume (e.g., g/cm³).
Specific gravity (technical): weight per volume (e.g., N/m³).
In English usage ("specific gravity"): dimensionless ratio relative to water.
When is a gas pycnometer better suited?
For porous solids or samples that react with liquids – it measures skeletal density non-destructively.
Interested in high-quality pycnometers? Feel free to contact us viainfo@mtv-messtechnik.deor+49 223 598717-0for tailored advice.
Detailed information about pycnometers:
Introduction
The precise determination of the density of materials such as paints plays a crucial role in the coatings industry, paint technology, and surface coating, among others. A precise measuring instrument that is essential for this task is the pycnometer. This article explores the functionality, areas of application, and advantages of a pycnometer.
Definition: Pyknometer
A pycnometer is a laboratory device for precisely determining the density of liquids, pastes and solids.
The term comes from the Greek “pyknos” – “dense”.
It is a measuring instrument for determining the density of solids, liquids, and pasty substances. It consists of a container with a precisely calibrated volume and a tightly fitting closure. The density of the sample can be determined by weighing the filled and empty pycnometer.
Discrimination:
- Liquid pycnometer: classic, made of glass or metal, with a defined volume (e.g. 10–100 ml)
- Gas pycnometer: uses gas displacement (e.g. helium) to determine skeletal density
Applications of pycnometers
Pycnometers are indispensable in:
- Chemical & pharmaceutical industry: formulation, quality control, density analysis of liquids and pastes.
- Coating and varnish industry (DIN EN ISO 2811-1): For determining the density of varnishes and coating materials.
- Pharmaceutical industry: For quality control of active ingredients and liquids.
- Food technology, food industry and environmental analysis, materials research: For determining the density of liquids and semi-solid products.
- Battery and building material technology
- A detailed list of industries where pycnometers are used can be found below.
How a pycnometer works
The density determination using a pycnometer is carried out in several steps:
- Determine empty weight: First, the empty pycnometer is weighed.
- Filling with sample: The pycnometer is filled with the substance to be examined.
- Reweighing: The filled pycnometer is weighed.
- Density calculation: The density of the substance is calculated from the weight difference and the known volume of the pycnometer.
Advantages of a pycnometer
High measurement accuracy
Pycnometers offer very high measurement accuracy, which is essential for quality control and compliance with industry standards.
Simplicity and reliability
The operation of a pycnometer is relatively simple, and the device provides reliable results that are easily reproducible.
Wide range of applications
The ability to measure solids as well as liquids and pasty substances makes a pycnometer a versatile instrument.
Cost savings
Accurate density measurements can help save material costs by enabling the optimal use of raw materials.
Quality assurance
Regular density determination allows quality deviations to be detected and corrected early. This ensures product quality and reduces complaints.
A pycnometer is a highly accurate instrument for measuring the density of a liquid with numerous applications.
It is needed in various industries, including:
- Chemical industry:
- Production processes: For monitoring the density of chemical solutions and reagents.
- Quality control: Ensuring that products meet specified density requirements.
- Pharmaceutical industry:
- Formulation development: Determination of the density of active ingredients and solvents.
- Quality control: Monitoring the density of liquids and solutions to ensure consistency and purity.
- Food and beverage industry:
- Production monitoring: Control of the density of liquids such as juices, oils and syrups.
- Quality control: Ensuring that products meet prescribed specifications.
- Petrochemical Industry:
- Refinery processes: Determination of the density of crude oil, fuels and other petrochemical products.
- Quality control: Ensuring conformity with standards and specifications.
- Environmental analysis:
- Water analysis: Determination of the density of water samples to monitor water quality.
- Soil contamination: Analysis of the density of liquids in soil samples.
- Materials Science and Engineering:
- Research and development: Determination of the density of new materials and liquids.
- Quality control: Monitoring material properties during production.
- Cosmetics industry:
- Product formulation: Control of the density of lotions, creams and other cosmetic products.
- Quality assurance: Checking product consistency and quality.
Details on the underlying standard DIN EN ISO 2811-1 can be found here:
DIN EN ISO 2811-1:2023-04
Paints and varnishes - Determination of density - Part 1: Pycnometer method (ISO 2811-1:2023)
Short summary:
The standard DIN EN ISO 2811-1:2023 defines the pycnometer method for determining the density of coating materials.
The coupling of DIN, EN and ISO ensures that the procedure is applied uniformly in Germany, Europe and worldwide
